Technical specifications

EAN

7640455521014

Article Number

LIGA.AIR.2.REL.240+

Input Voltage

230 VAC 50 Hz

Output Voltage

230 VAC

Max Power

10A / 230 VAC

Output Current

10A

Control / Dimming

Casambi Bluetooth; 2 channels

Dimensions

50 x 50 x 25 mm

Operating Temperature

-20…+50°C

Mounting

flush-mounted box or cable trunking

Additional Spec

2-channel variant; class II

IP Class

IP64

Brand

Licht Team

Wireless Protocol

Casambi Bluetooth

Number of Channels

2

Long Range

No

NFC Configurable

No

Documents

Description

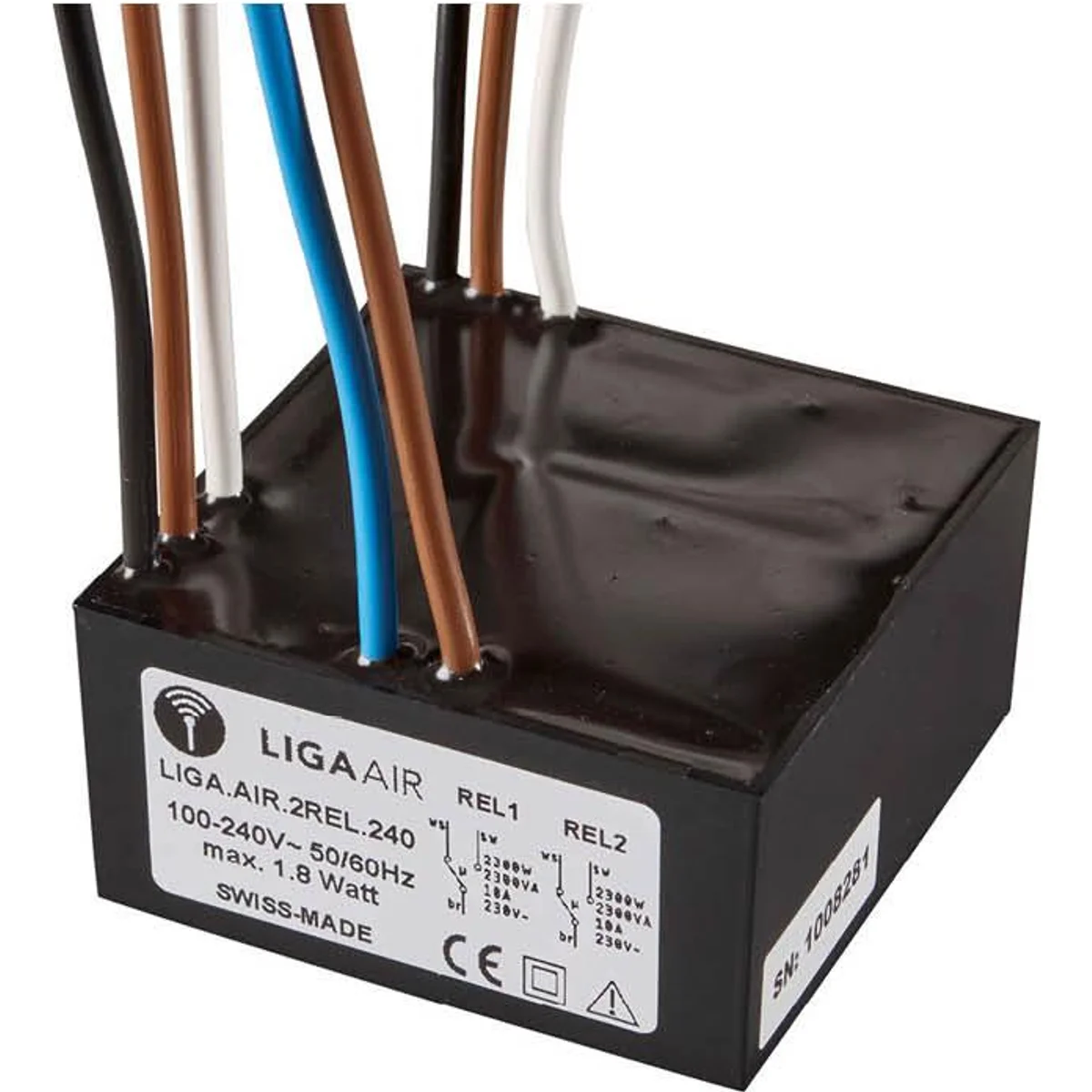

The LIGA.AIR.2.REL.240+ is a 2-channel on/off relay from Licht Team with Casambi Bluetooth for 230V AC loads, in the same family as the 1-channel variant but with two independent relay outputs in one unit. Mains supply 230 VAC 50 Hz, each output 230 VAC at up to 10 A. Compact 50 × 50 × 25 mm housing fits in a flush-mounted box or cable trunking, IP64, Class II construction. Operating range -20…+50°C. With two channels, the unit can switch two separate lighting groups or circuits (two rooms, or two rows of fixtures, for example) from the same physical mounting point, reducing device count and simplifying wiring versus two separate 1-channel relays. Each channel appears as its own wireless node on the Casambi Bluetooth mesh for individual on/off switching, scheduling and grouping. Suited to installations where non-dimmable loads on two separate circuits need to become wirelessly switchable – corridor and stairwell lighting fed from the same box, for example. Confirm each channel's load stays within 10 A.
